The harmony of life on the hillside

Private property, no fences, its own recreation area, a picturesque hilly landscape - all you need for a comfortable suburban life of people united by the common idea of living in harmony with themselves and nature.

  • Location: Ulan Bator, Mongolia
  • Area: 3 ha
  • Project Scope: 20 houses
  • Year: 2022
Modern Architecture
Safe environment
Unified design code
Complex topography
Picturesque View
TERRACOTTA

Concept

The main idea of the project lies around the creation of a compact residential township within an hour's drive from the capital of Mongolia. The houses in the township are designed for young families with different levels of needs: two, three, four living rooms. Each family will be able to find a house that meet expectations.

TERRACOTTA

The general plan of the township

When designing the township it is important to consider the factor of privacy, which, in this case, is achieved by placing the houses in relation to each other and in this case the topography helps us. Therefore, in the general plan, we placed the houses at a certain distance to preserve the visual characteristics, while we oriented each house taking into account the direction of the relief and view axes.

TERRACOTTA

Functional zoning

Because the slope itself faces south, southeast facing, we've planted the homes on lots so that each one interacts with incredible views of the hills, mountains and sun.


Legend


Type 1 houses

Type 2 houses

Type 3 houses

Roads

Recreation zone

Technical area

Talweg
TERRACOTTA

Street profiles

The difficult terrain of the site is a characteristic feature of our township, which we paid special attention to. Since in the architecture there is a lot of panoramic glazing, it was extremely important to place our houses on a slope so that from the windows there is a view of the beautiful landscape and vegetation. At the same time the transport links must ensure maximum comfort for the residents.

Due to the small size of the territory, we have developed two types of streets: the central road and the roads along the turning points with width of 6m and 4m respectively. They are separated by specially arranged landscaped islands, which perform noise-insulating, aesthetic and ecological functions.



TERRACOTTA
TERRACOTTA

Housing typology

One of the most important inputs for this project was Mongolia's extreme continental climate: very hot summers and very cold winters. So, the issue of overheating here is as acute as that of freezing. This factor was taken into account in the formation of the architectural image and the choice of the appropriate structural systems. As a result, we have developed 3 types of houses, which differ not only in total area and number of rooms, but also in the way they interact with the terrain.

Residential building type 1

TERRACOTTA <span>Residential building</span> type 1

Residential building type 2

TERRACOTTA <span>Residential building</span> type 2

Residential building type 3

TERRACOTTA <span>Residential building</span> type 3

Architectural design code

As part of the overall concept, we have chosen the most laconic and clear materials so as not to disturb the existing context, but rather to dissolve the architecture in it.

The main material of the project is concrete: calm, reliable, merging with the rocks. We also use wood, a warm, natural material through which it is pleasant to interact with the architecture in the most tactile areas: terraces and entryways. The anthracite metal in this case acts as a backdrop and helps to create a more expressive architectural image.



TERRACOTTA

Economic indicators

In the design of townships a special place takes the calculation of technical and economic indicators. Forming the balance of the territory, we conditionally divide the site in the percentage ratio according to its functional filling and further compile several options for economic models for customers and potential investors.



Territory balance



80%
Residential Function

25 607 м²

15%
Road area

4 393 м²

5%
Recreation .......

1500 м²

Technical and economic indicators
Concept for 21 units

House typology

1

2

3

Summary

Total area per unit (m²)

130

180

220



Number of

11

5

5



Total area (m²)

1430

900

1100

3430

The cost per 1m² ($)

800

800

750



Total prime cost per unit ($)

104 000

144 000

165 000



Total prime cost ($)

1 144 000

720 000

825 000

2 689 000

Cost per 1m² ($)

2000

2000

1800



Total cost per unit ($)

260 000

360 000

396 000



Total cost ($)

2 860 000

1 800 000

1 980 000

6 640 000



Technical and economic indicators
Concept for 24 units

House typology

1

2

3

Summary

Total area per unit (m²)

130

180

220



Number of

15

8

3



Total floor area (m²)

1950

1440

660

4050

The cost per 1m² ($)

800

800

750



Total cash cost per unit ($)

104 000

144 000

165 000



Total prime cost ($)

1 560 000

1 152 000

495 000

3 207 000

Cost per 1m² ($)

2000

2000

1800



Total cost per unit ($)

260 000

360 000

396 000



Total cost ($)

3 900 000

2 880 000

1 188 000

7 968 000



TERRACOTTA

Residential buildings 173 m²

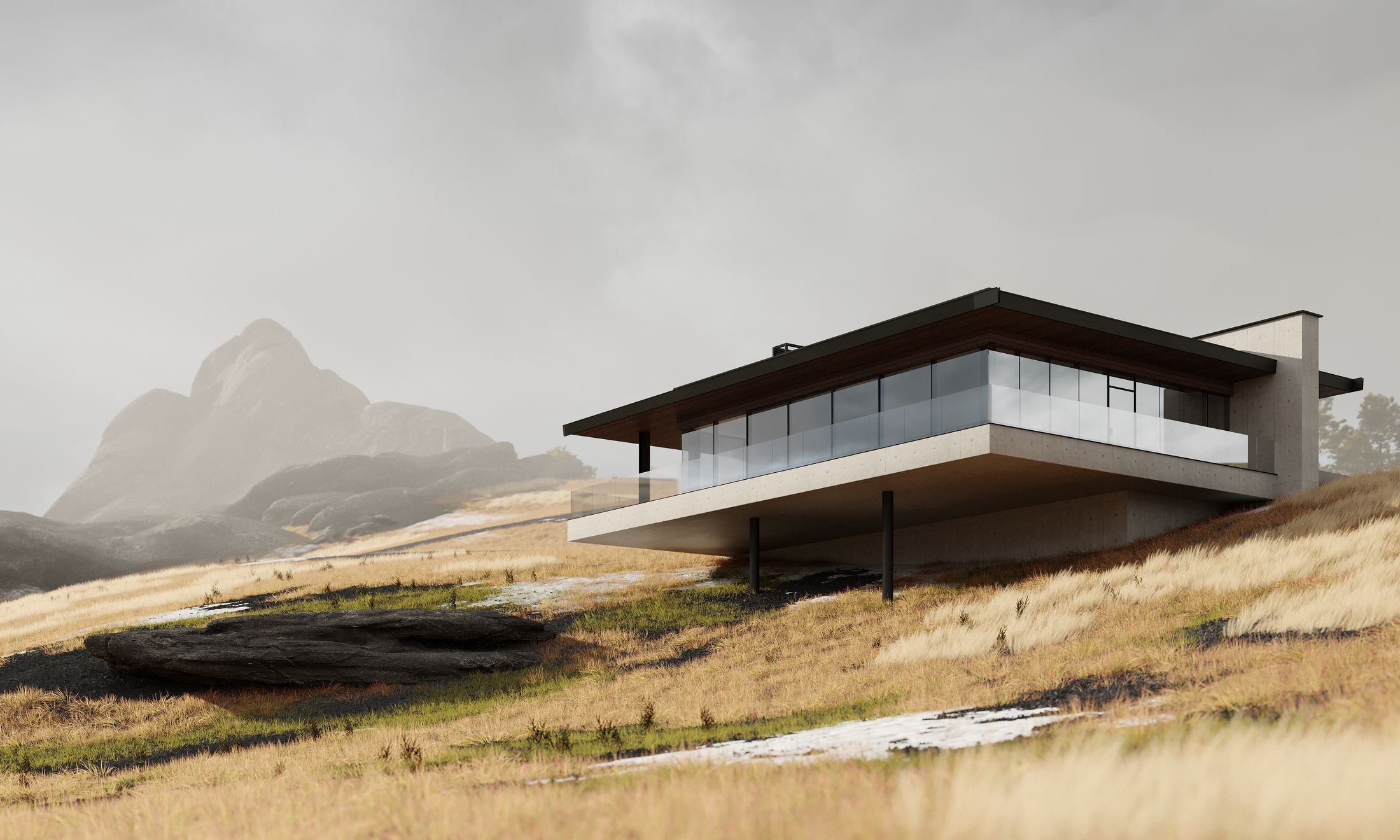

A distinctive feature of this type of house is the arrangement of all the rooms on one storey, as well as the location of the entrance to the house from the rear façade, while the front of the house overhangs the topography. We have oriented all the living spaces in the direction of prospective views, which open up through a continuum of panoramic glazing.

Floor plan 1

1.

Dining Room

37 м²

2.

Laundry

4 м²

3.

Boiler Room

6 м²

4.

Garage

48 м²

5.

Storeroom

4 м²

6.

Bathroom

5 м²

7.

Bedroom

15 м²

8.

Bathroom

5 м²

9.

Bedroom

13 м²

10.

Living room

18 м²

11.

Hall

14 м²

12.

Corridor

4 м²



Summary

173 м²

TERRACOTTA

TERRACOTTA

TERRACOTTA

TERRACOTTA

In order to prevent freezing, we put the house on piles, and on hot summer days, slight extensions around the perimeter will protect the house from overheating. So, thanks to the peculiarities of the climate, we formed an expressive architectural image


TERRACOTTA

Residential buildings 241 m²







In this house, unlike the first type of houses, there are already 2 levels, which are represented by two blocks: the residential and the housekeeping one. The living block is elevated above the level of the street and neighboring houses, allowing you to observe the surrounding scenery from all the main rooms of the house.

First floor plan



1.

Hall

18 м²

2.

Boiler Room

9 м²

3.

Laundry

11 м²

4.

Bathroom

5 м²

5.

Garage

48 м²



Summary

91 м²

2nd floor plan



1.

Dining Room

34 м²

2.

Kitchen

13 м²

3.

Living room

29 м²

4.

Corridor

5 м²

5.

Study

14 м²

6.

Bathroom

6 м²

7.

Bedroom

23 м²

8.

Bedroom

20 м²

9.

Bathroom

6 м²



Summary

150 м²

TERRACOTTA

TERRACOTTA

TERRACOTTA

TERRACOTTA

We have designed overhangs around the perimeter of the common area, which cover the terrace and block the direct sunlight in summer. The primary bedroom is covered by front shutters, which you can open and enjoy the view.


TERRACOTTA

Residential buildings 248 m²







The houses of this type differ from the first two in that the first floor has acquired a residential function. In addition to the standard garage and entrance area, it also houses a bedroom with its own bathroom and an office. The entrance and entry to the house is performed through the lower floor, so the living space on the second floor acquires maximum viewing capacity.

Plan 1 floor



1.

Hall

14 м²

2.

Closet

5 м²

3.

Bathroom

7 м²

4.

Laundry

6 м²

5.

Boiler Room

6 м²

6.

Bedroom

17 м²

7.

Garage

48 м²



Summary

102 м²

2nd floor plan



1.

Dining Room

56 м²

2.

Living room

29 м²

3.

Bedroom

19 м²

4.

Bedroom

16 м²

5.

Room

6 м²

6.

Room

6 м²

7.

Room

4 м²

8.

Room

5 м²



Summary

146 м²

TERRACOTTA

TERRACOTTA

TERRACOTTA

TERRACOTTA

The house also has extensive overhangs around the perimeter of all the living areas, which protect the rooms from overheating in the summer and let the rays in for extra heating in winter when the sun is lower.
